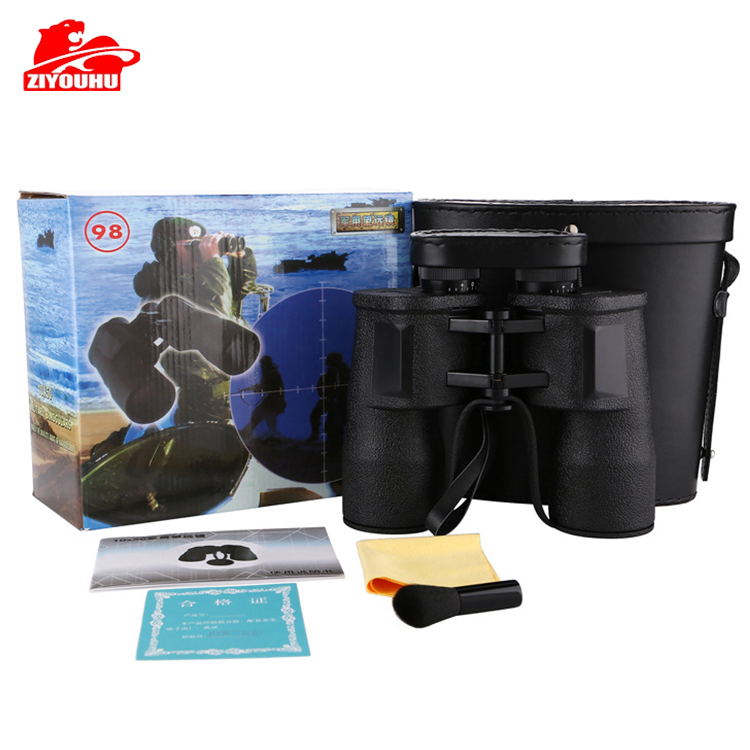

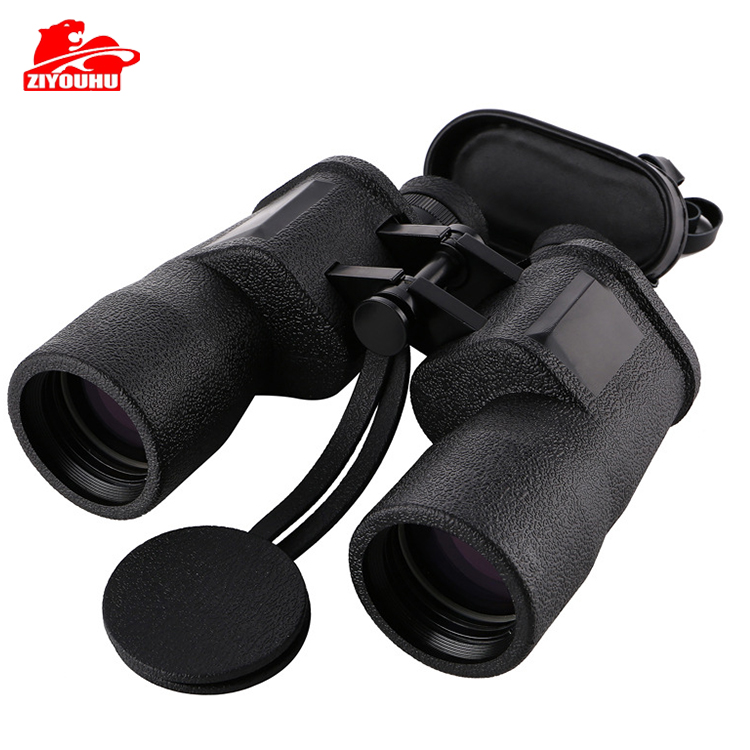

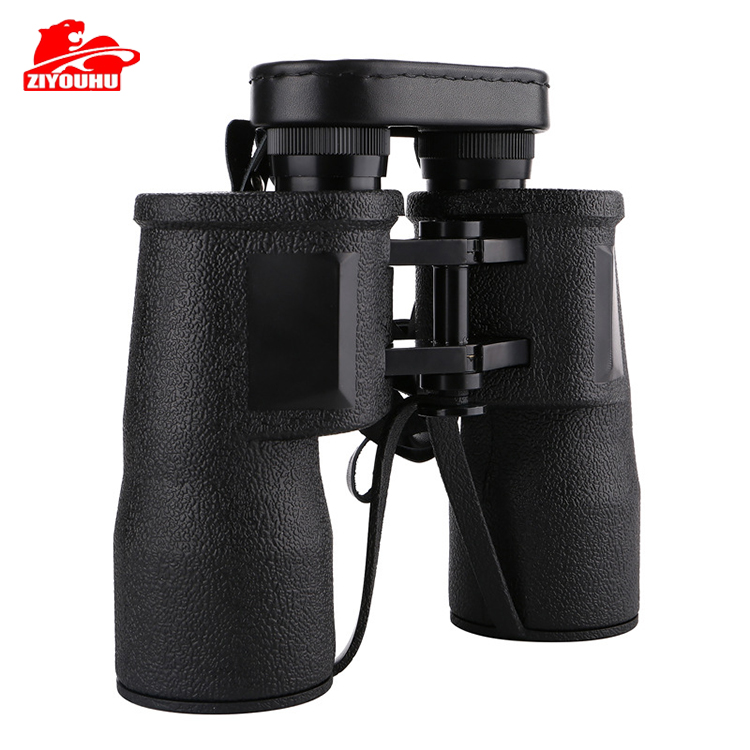

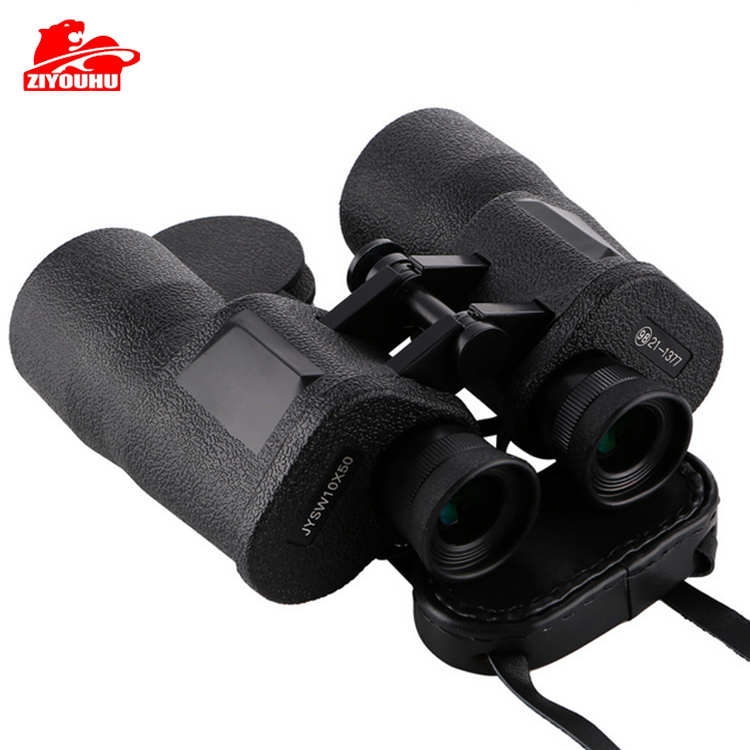

Yunguang genuine T98 type 10X50 double-barrelled high definition telescope with cowhide boxproduct category:Rangefinder
Military telescopes have different optical systems.Most military telescopes have dividers, which are illuminated at night.Military telescopes have a large distance between the pupils to allow the observer to wear a gas mask.In order to avoid hitting the head during shooting, some sight glasses have a distance of 70 to 80 mm from the pupil.
Optical properties:
1, magnification: 10 times
2, field of view: 6 °
3, exit pupil diameter: К5mm
4, exit pupil distance: 18mm
5, resolution: 5.6 "
Environmental temperature:
1, storage temperature: -55-+70 °C
2, working temperature: -40-+55 °C
Structural performance
1, horizon adjustment range: ± 4 diopter
2, eye range adjustment range: 55-72mm
3, division panel value: 5 dense/grid, range: 8 grid(40 grid), left and right 8 grid(40 grid)
Volume and mass
1, volume(length X width X height)
Telescope:(zero vision) 215x75x180mm
Mirror Box: 225x100x195mm
2, quality
Telescope: 1.2 kg Full mass: 1.9 kg
