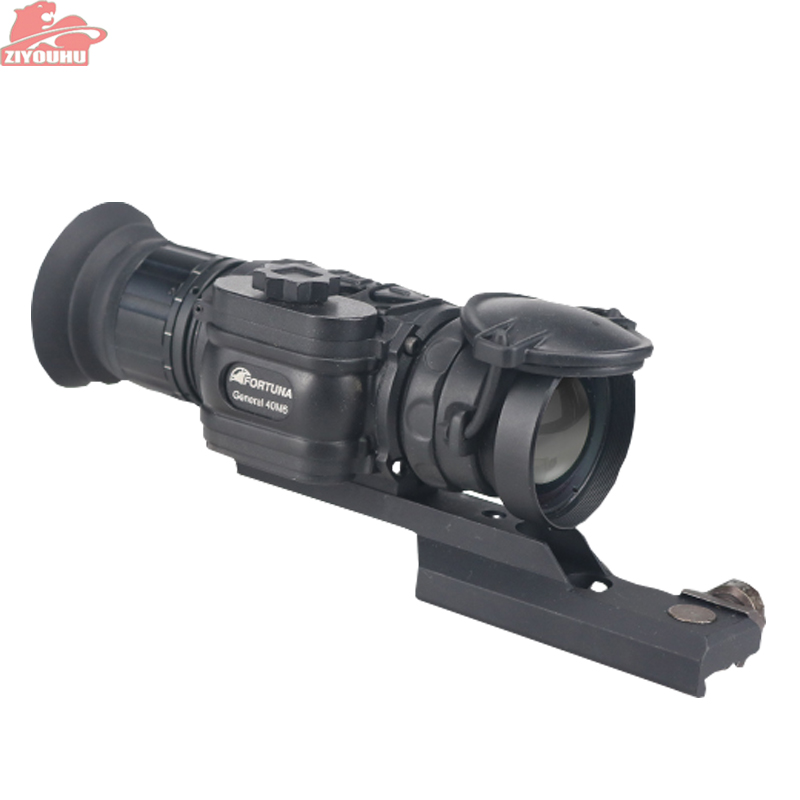

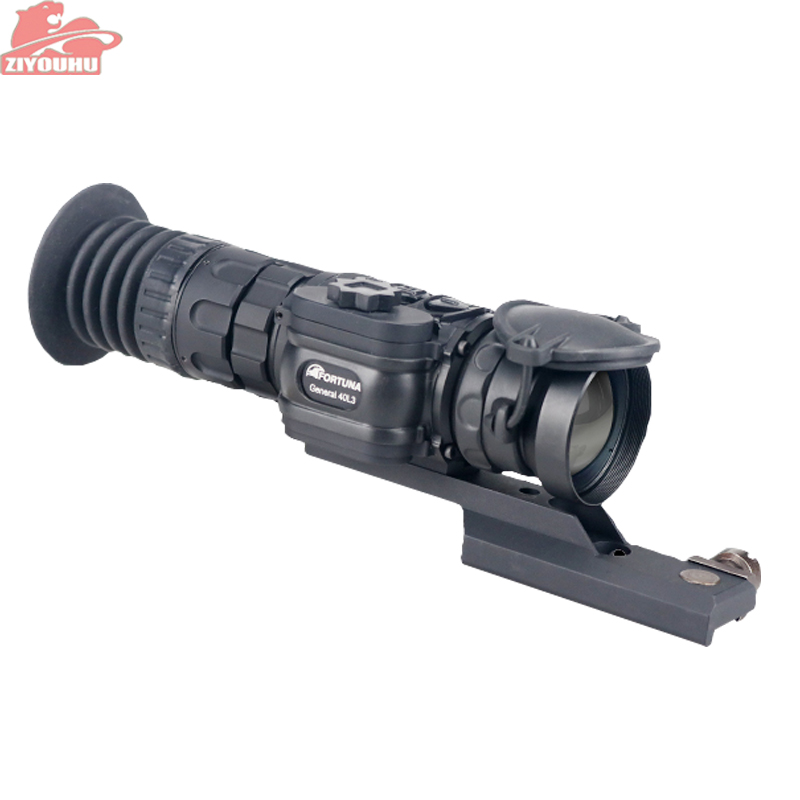

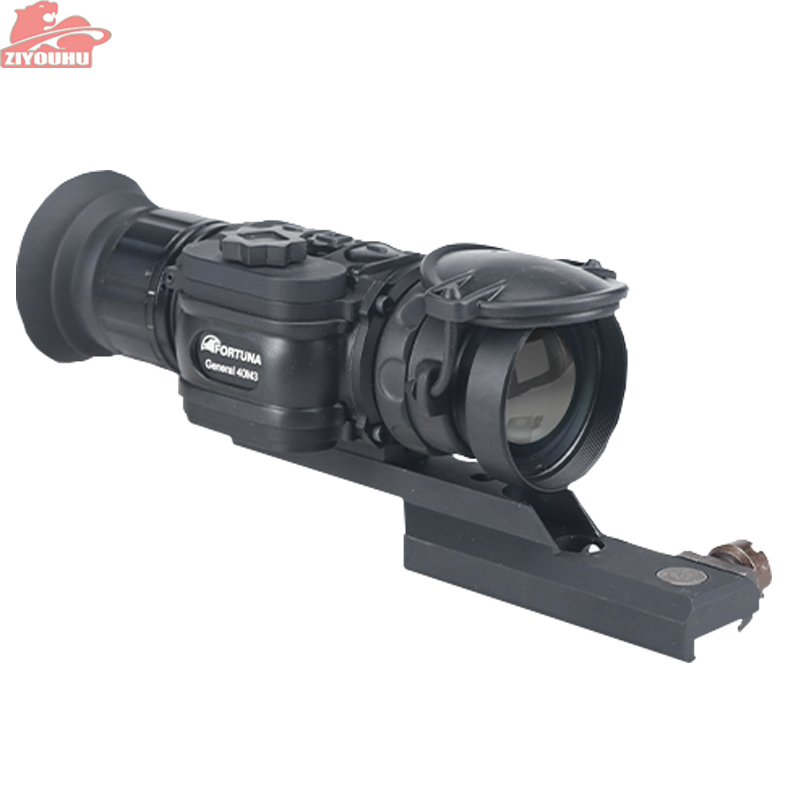

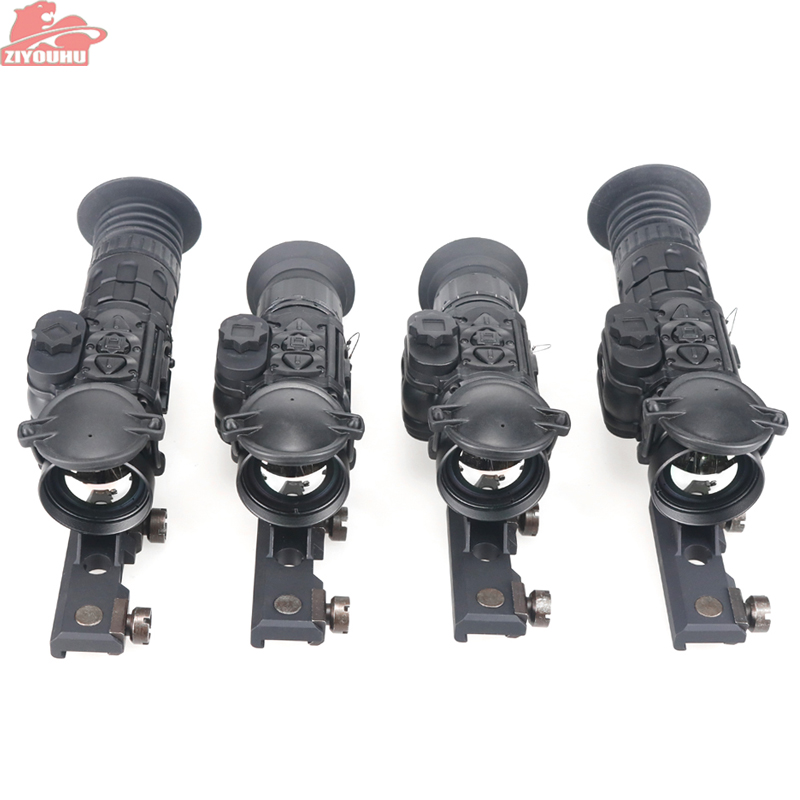

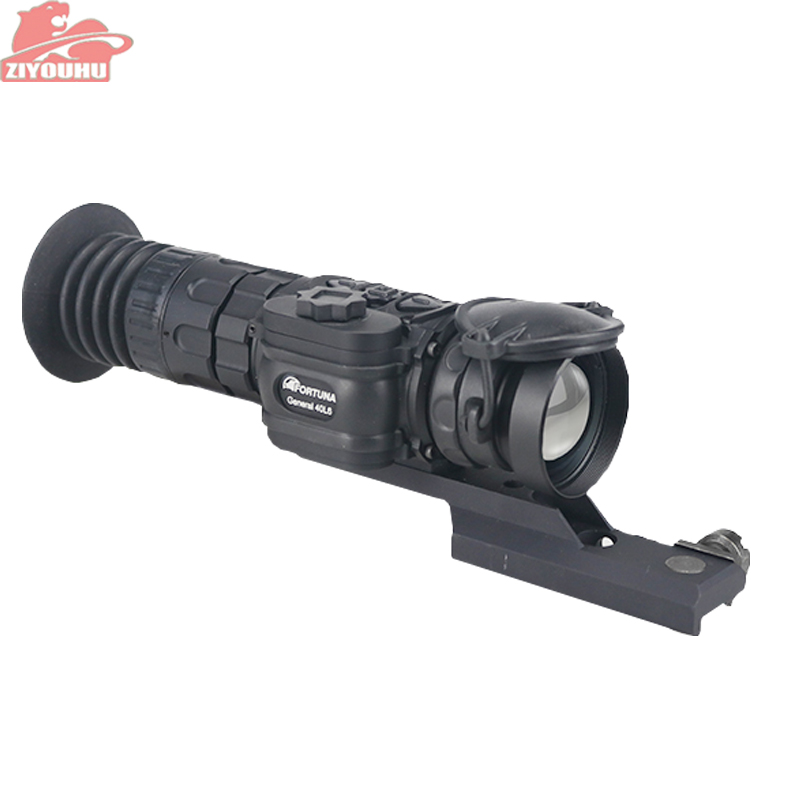

  • Russian FORTUNA FORTUNA high resolution imaging sight 40M3 40L6

    product category:Digital white light sight

    The infrared thermal imager USES the infrared detector and optical imaging objective lens to accept the infrared radiation energy distribution graph of the measured target and reflect it to the photosensitive element of the infrared detector, so as to obtain the infrared thermal image graph, which corresponds to the thermal distribution field on the surface of the object.Generally speaking, infrared thermal imager is to transform the invisible infrared energy from an object into a visible thermal image.The different colors on the top of the thermal image represent the different temperatures of the object being measured.



Detail Introduction

Luck makes you feel the world's advanced thermal imager, advanced vanadium oxide detector display delicate, smooth, power saving and miniaturization for daily use has brought great convenience.

During the FORTUNA promotion period, we continued to receive feedback from many customers, while the first and second batch of players were interspersed with high-end people who had previously purchased pulsars and IRMK2, REAP IR. The current comprehensive feedback of this group of players is that FORTUNA is more than double the size and weight of the pulsar, the fineness and fluency of the image are not lost to the pulsar, and the FORTUNA of the 640 detector is more likely to kill the identification of small targets at the far end of the pulsar. More advanced IR buyers speak, due to FORTUNA's excellent delayed track design,(the installation track of many new shotguns in hunting grounds is relatively forward, and currently there are few hot sights such as FORTUNA's ultra-low baseline and delayed design). Experience in actual use, The comfort of the upper eye and the observation field exceed IR.

FORTUNA(Latin translation: Goddess of Destiny, Goddess of Fortune in Roman mythology)

FORTUNA General Series thermal imaging 40mm lens, new vanadium oxide 640 and 384 detectors

Comparison of the two FORTUNA product parameters:

Model No.: 40M3(384) 40L3(384) 40M6(640) 40L6(640)

Price:

Detector: vanadium oxide 17 μm, 384 X288 vanadium oxide 17 μm, 640 X480

Multiples: 2.8-11 .2 times 2-8 times

Detection distance: more than 1,000 meters and more than 1,000 meters

Refresh rate: 50 Hz 50 Hz

Objective: 40 mm 40 mm

Sensitivity: <unk> 50mK <unk> 50mK

Display: AMOLED 800 X600 AMOLED 800 X600

Length: 15 cm 17 cm 15 cm 17 cm

Size of blindfold: mm 55 x 72 X 195 55 x 72 X 225 55 x 72 X 195 55 x 72 X 225

Weight: 580 g 620 g 580 g 620 g

Dust-proof waterproof: IP67 IP67

Focus distance: 10 meters to infinity 10 meters to infinity

Power supply: CR123A Lithium X2 or USB CR123A Lithium X2 or USB

Working temperature: -30. .. .. +50 °C -30. .. .. +50 °C

Duration: 4-5 hours(CR123A lithium) 4-5 hours(CR123A lithium)</unk></unk>
