Product Profile:

Military operations, border defense guards, customs and other sniper missions are the ideal equipment for the military and armed police special police.

Product characteristics:

6X magnification, quasi-three-generation image enhancer, strong shockproof ability, high light permeability, long exit pupil distance

Precision tactical deviation / height adjustment, card for various types of firearms, dust, rain, light weight

Please read the rules carefully and assemble a rifle with night vision sight using its equipped mount.

Damage caused by the operation, assembly and use of the product in violation of the rules will not be covered by the manufacturer's warranty

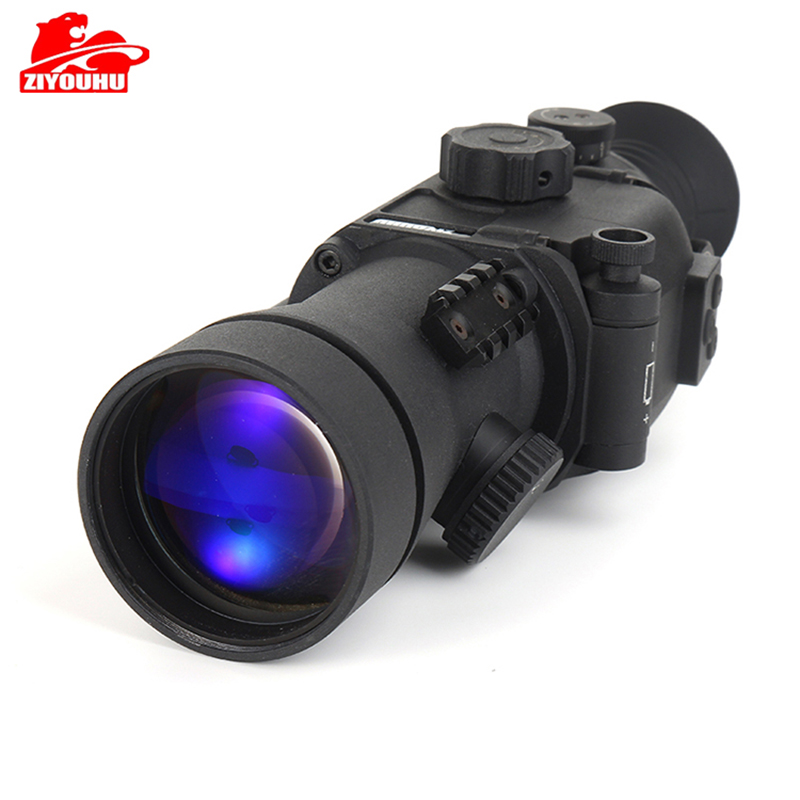

The appearance of the device

1 The main body of the device

2 objective lenses

3 eyepiece

4 rubber blindfolds

5 battery cartridge

6 objective cover

7 Wind correction / elevation device regulator

8 Device to turn on / off / power switch and infrared light

9 Switch to adjust the brightness of the central cross

10 objective focus button

The base connection of the 11 rifle

summarize

The night vision gun uses a high-performance quasi-three-generation image intensifier, which greatly improves the observation clarity. As long as you can meet the conditions for the use of low-light illumination 10-<person::0>(low-light surface light), you can perform sniper operations in the wild at night. In addition, the gun aim has automatic protection against strong light, which is very suitable for urban operations. The aim of the gun is equipped with an independent controllable infrared auxiliary illuminator, which can meet the different conditions for the use of military and police operations. The aim of the gun is applicable to the international standard Picatinny guide rail, using its own connecting mechanism, which can be applied to China's 85-style 7.62 mm, 03th-style and 88-style 5.8 mm sniper rifle.

Note: The range of observations and identification provided by the equipment depends on the illumination of natural light and the circumstances in which it is used.

Specifications:

1 magnification 6x

2 brand ZIYOUHU

3 Model DN650G

4 focusing range 10(M) ~ infinity

5 exit pupil diameter 9mm

6 exit pupil distance 50mm

7 diopter +5 / -5

8 Image enhancement tube quasi-three generations

9 Resolution 62 ~ 72 lp/mm

10 Observation distance greater than 450 M

11 Power voltage 3V, section 3V lithium battery

12 No infrared operating time 60 hours

13 Appearance size 318x98x112mm

14 Viewing angle 9 °

15 objective diameter 72 mm</person::0>
