Night vision series
  • The American NVM - 14

    product category:Night vision series

    With the image intensifier as the core device, the night external aiming device does not use infrared searchlight to illuminate the target when working, but USES the reflected light of the target under weak light to observe and aim the target by enhancing the visible image that can be felt by human eyes through the image intensifier on the screen.



Detail Introduction

Product description:

This night vision system is suitable for hand-held, wearing, helmet installation, or for weapons. It is widely used. Able to perform night trips, driving, weapon shooting, short-range surveillance, reading maps, maintenance and management of vehicles, and first aid under conditions of moonlight and starlight. You can make various attitude adjustments when using the headstring. The overall design is compact, sturdy and equipped with built-in infrared lights. Capable cameras can also be installed on optical sights to enable ordinary sights to have night vision.

Features:

Single head single tube night vision instrument, light and strong, waterproof fuselage

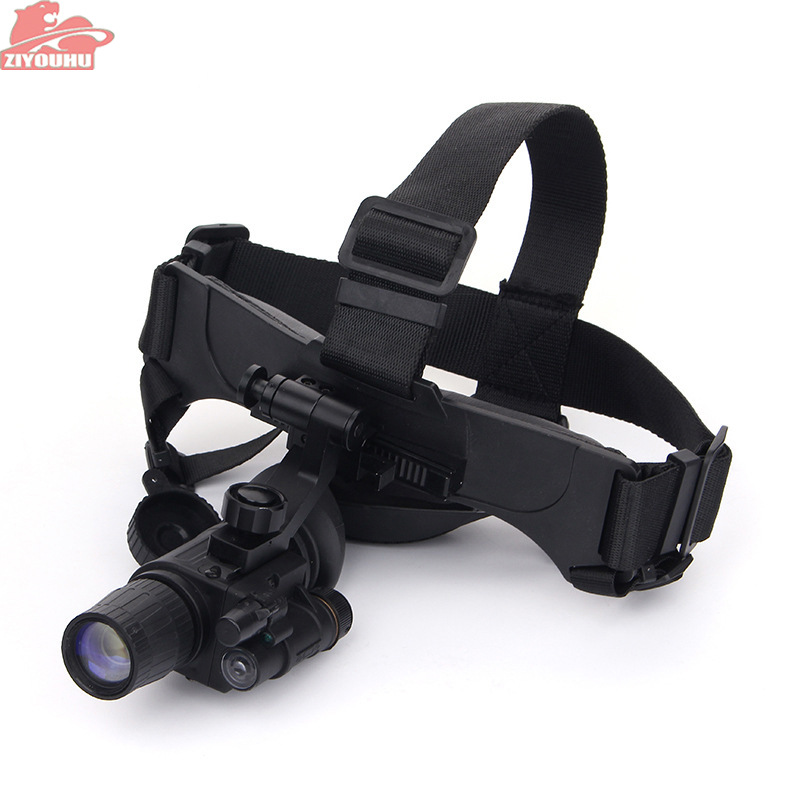

Handheld or optional with headgear or helmet support

Strong light protection and automatic brightness control

Like enhancers: WPT level, sharp image

Electromagnetic anti-electromagnetic lens coating

The built-in infrared light supplement can regulate direct radiation and scattering

Can be equipped with 3, 5, 8 times lens and external high-power infrared fill lamp

When installing 3 times the lens, you do not need to unscrew 1 times the original lens to avoid dust and moisture

When installing 8 times the lens, it can be used for remote observation

Image acquisition can be done by connecting the camera through the adapter ring

Can be used as a night vision gun sighting mirror with white light gun sighting

With Auto function, when wearing a head, roll up and wear a support, the device automatically closes

Can use 1 3V lithium or 1 AA alkaline battery

Technical parameters:

Enhancement tube: WPT resolution: 60-74 LP / mm

Magnification: 1 x(3, 5, 8 x optional) field of view: 40 degrees

Diopter regulation: -6 to +2 lens system: F1 .2, 27 mm

Focus range: 0.25 meters to infinity power supply: 3 V(CR123A) 1 section

Battery life: 60 hours operating temperature: -40 to +50 °C

Storage temperature: -50 to +70 °C Volume: 120 x 49 X 69 mm

Weight: 0.34 kg
