Product Information
Brand: ZIY OUHU

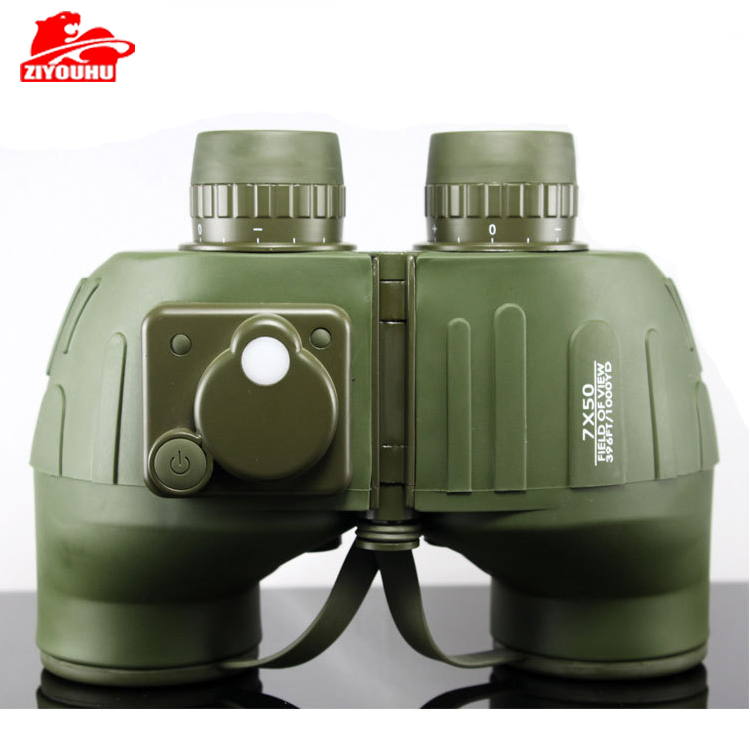

Test project technical parameter magnification 7x
Incoming pupil diameter(mm) φ 50
Exit pupil diameter(mm) φ 5 field of view(angle) 7.1 °
Exit pupil distance(mm) 22.8 mm
Recent focal length(M) 9M
Identification rate(center of view) ≤ 4.5 ′ ′
Like slant ≤ 1 °
Relative tilt ≤ 30 ′
Two separate eyepieces in the form of objective lenses Five separate sets of lens coated broadband film Prism coated broadband film
Baoluolengjing focusing system of PRISM system
Mechanical minimum eyepiece distance(mm) 56mm maximum eyepiece distance(mm) 74mm
Decimal 15(diopter)-5(diopter)
Parallax 0.5(diopter)
Ejective optical axis parallelism large eye distance and small eye distance horizontal convergence ≤ 20 ′
Horizontal divergence ≤ 60 ′
Vertical ≤ 20 ′
Drop Test Height(Surface)
15 CM thick sand layer, products into plastic bags, 1.83 M height fall.
