Welcome to use NVDT-M01-PRO + series of digital night vision devices, this product can be used during the day and night.
This product has 2 times / 4 times magnification, using the United States imported VGA 0.26 '(640X480)
High-definition display, day observation scene is color image, night observation scene is black and white image. Objective diameter
24mm/50mm, using imported infrared lamps from the United States, observation range 150m/250m(target size,
The intensity of light, air quality, weather and other factors in the observation environment will affect the observation effect.)
With this product, you will easily find your target in the dark. Whether it's adventure, hunting, or dark.
Environmental security, this night vision device is your must-have.
Warning: Please comply with the following basic safety requirements when using this photoelectric device
Only for adults.
Night vision is not a toy. Please use it carefully.
This night vision device is for entertainment only. It is forbidden to use this product for illegal activities.
Maintenance: Keep away from water vapor and store in a cool and dry place. Do not try to repair your own products, non-professional
People are limited to cleaning the lens with a dry and soft mirror cloth.
Product Key Introduction:
1: Battery cover 2: switch button(on/off) 3: red-haired outer light switch(dark night open)
4: Bright/low illumination adjustment handwheel 5: eyepiece(adjust display resolution) 6: objective lens(adjust far and near objective objective / resolution adjustment)
7: AV Video Output Port(Connect this night vision device to a TV or computer via the AV line)
Use step:(operate against the number of the right button)

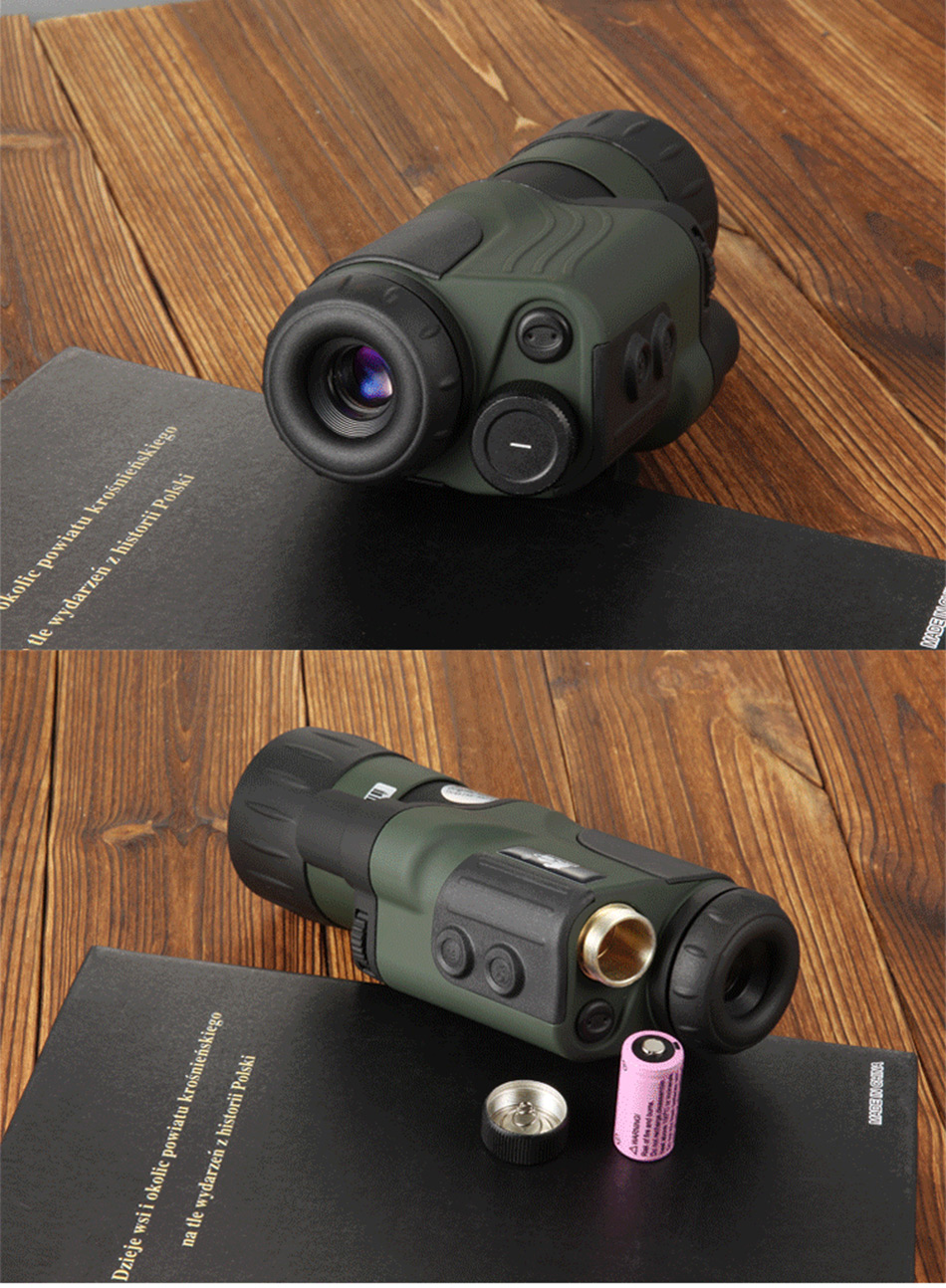

First, open the battery cover 1 and load it into CR123A(3V) battery 1 section. The positive pole is inward, the negative pole is outward, and then the battery cover is installed(Note that the positive and negative poles of the battery can not be reloaded! ).
Second, press boot key 2, when the green indicator light is on, it means boot.
Third, IR needs to be opened when used in full night or in a darker environment. When the 3 key red indicator is pressed, IR is turned on. On the other hand, the IR light can be used without turning on the brighter place.
Fourth, the eye can see the internal display light through the eyepiece 5. At this time, the display screen can clearly see the rectangular display by rotating the eyepiece 5.
Fifth, select the target that needs to be observed, align objective 6 with the target direction and use hand-rotating objective 6 to enable it to clearly see the target that needs to be seen. If the rotating objective 6 can not see the target or the image is too dark or white screen, it is necessary to manually adjust the brightness / low illumination knob 4 to make it the best observation effect.
Sixth, after you can see the target object, so that the product can see the best image, you should fine-tune 4, 5, and 6.
Seventh, AV video output port 7, use the AV line to connect this night vision device to an external display such as a TV or computer.
