Product Profile:

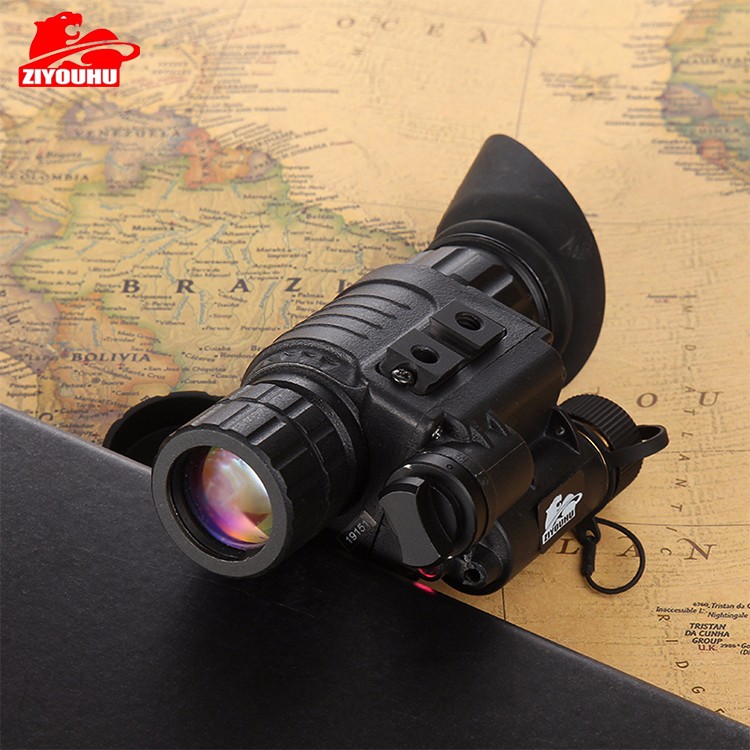

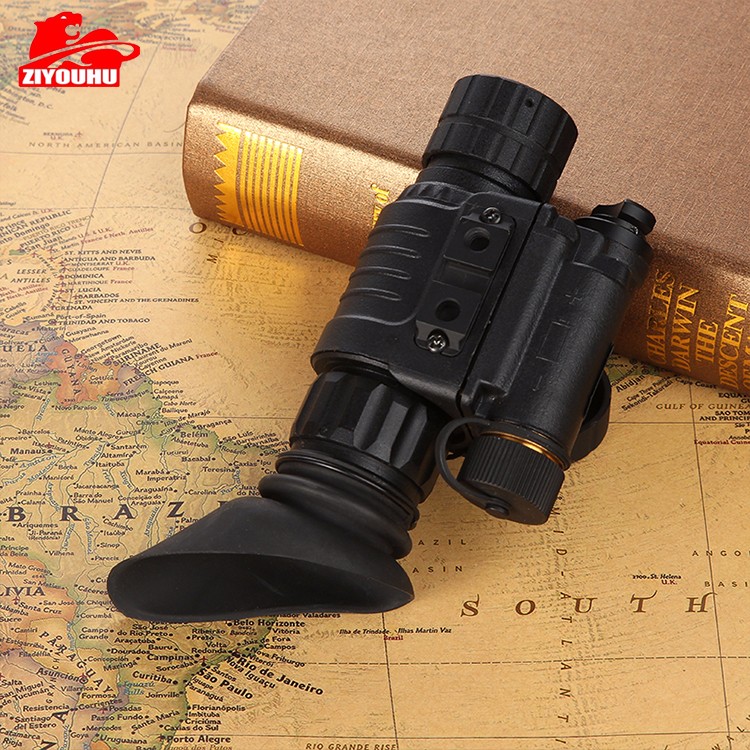

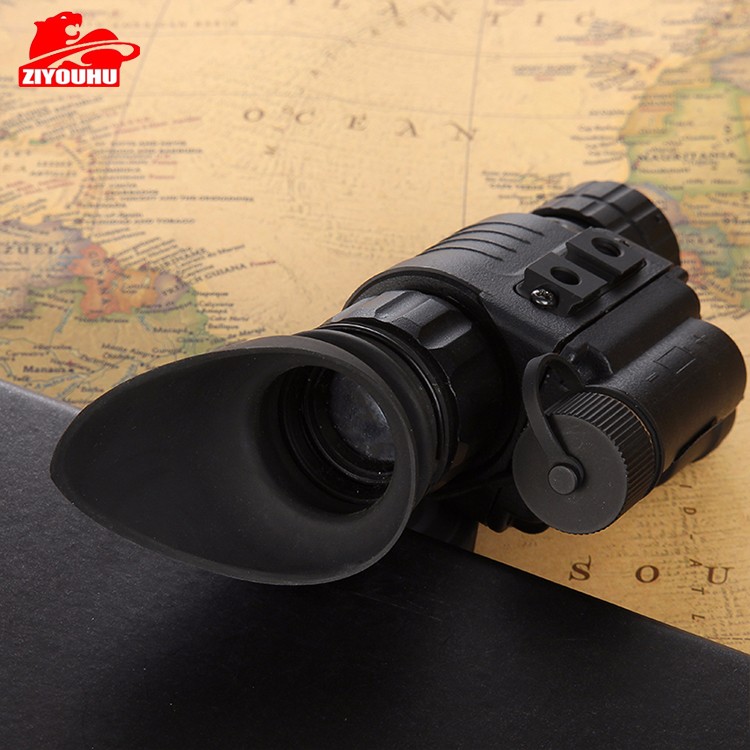

ZIYOUHU DE-MHB-D is a new product developed by Russia. The instrument uses three generations of high-performance intensifiers. It has excellent performance, small size, light weight, clear imaging, and simple operation. The magnification and other characteristics can be changed by replacing objective lenses. The product can be connected to digital cameras, cameras, video cameras and CCD cameras, and can also be used alone. The night vision instrument has a built-in infrared auxiliary light source and an automatic anti-glare protection system. The product has strong practicality and can be used for military observation, border and sea defense reconnaissance, public security surveillance, evidence collection, customs smuggling, etc. in an unlit environment at night. It is an ideal equipment for public security departments, armed police units, special police units, and guardian patrols. north

Main Performance Indicators of Night Vision Devices
Title: ZIYOUHU 1 times objective lens 4 times objective lens
Like an intensifier, three generations.
Eye goggles equipped
Automatic strong light protection features

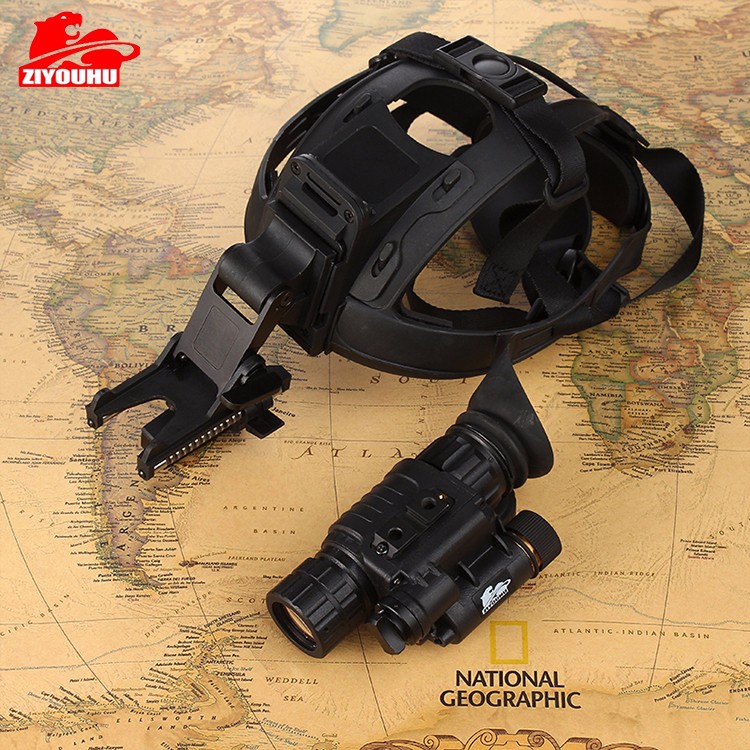

Helmet support can be flipped, single hand removable, weight less than 0.3 kg
Resolution:(target contrast 85 %, reflectivity 90 %, illuminance 1 × 10-2 LX) 1.59 Mrad
Line 57-64.
Multiplicity(times) 1 4
Observation distance(M) 400-1000
Field of view(degree) 40 ° 10 °
Objective Regulation Range(M) 0.25- 10-
Eyepiece regulation range(diopter) ± 5
Exit pupil diameter(mm) 7mm
Exit pupil distance(mm) 30
Range of eyes(mm) 52-75
Power Type 1 3V CR-123 lithium battery
Power voltage(V) 3V
Infrared light source action distance(M) 20 meters
Open auxiliary infrared illuminator for continuous work time for 20 hours
Close the auxiliary infrared illuminator to work continuously for 40 hours
Shape size(mm) 118 x 48 X 69 170 x 70 x 70
Product net weight(g) 250 g 550 g
Operating temperature range(°C) -40 °C + 50 °C
Useful life(hours) 10000
