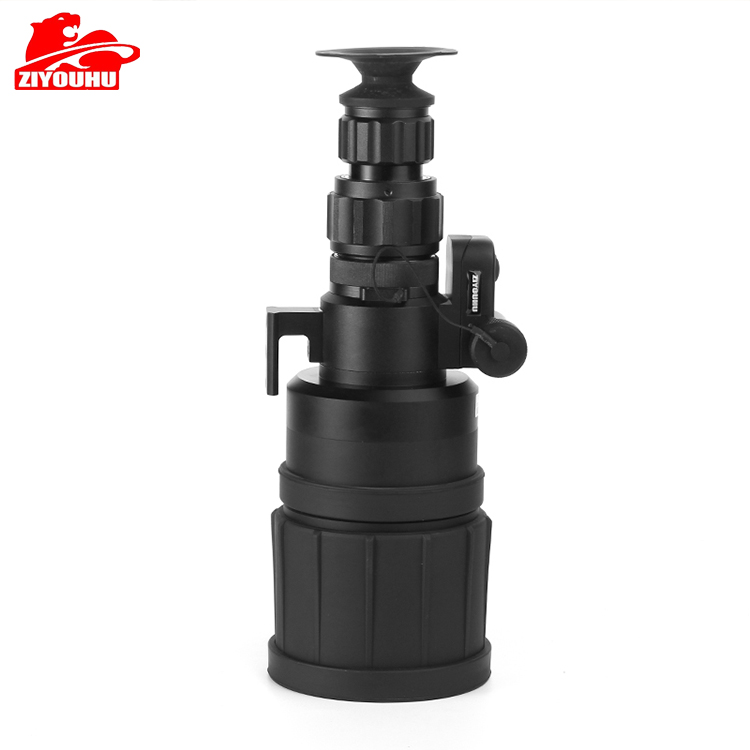

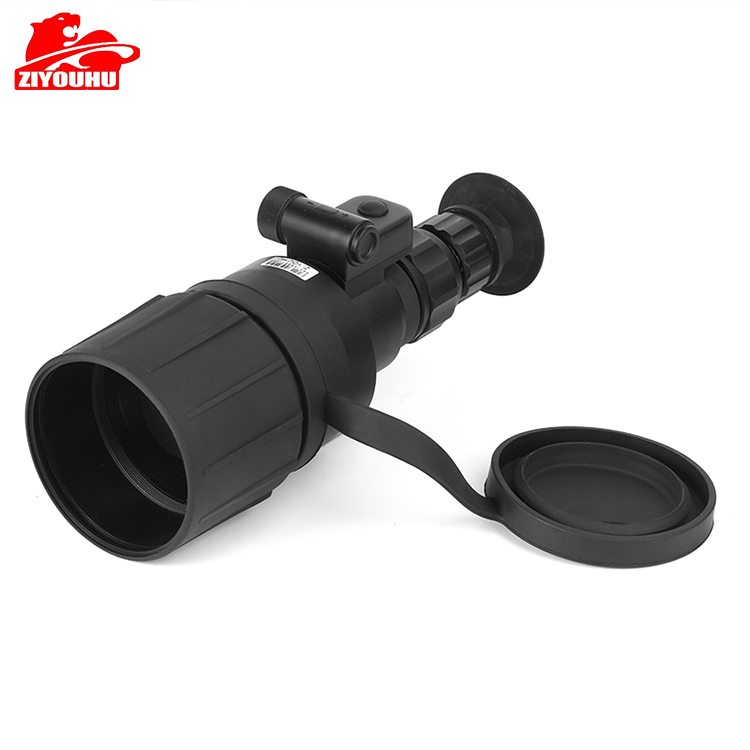

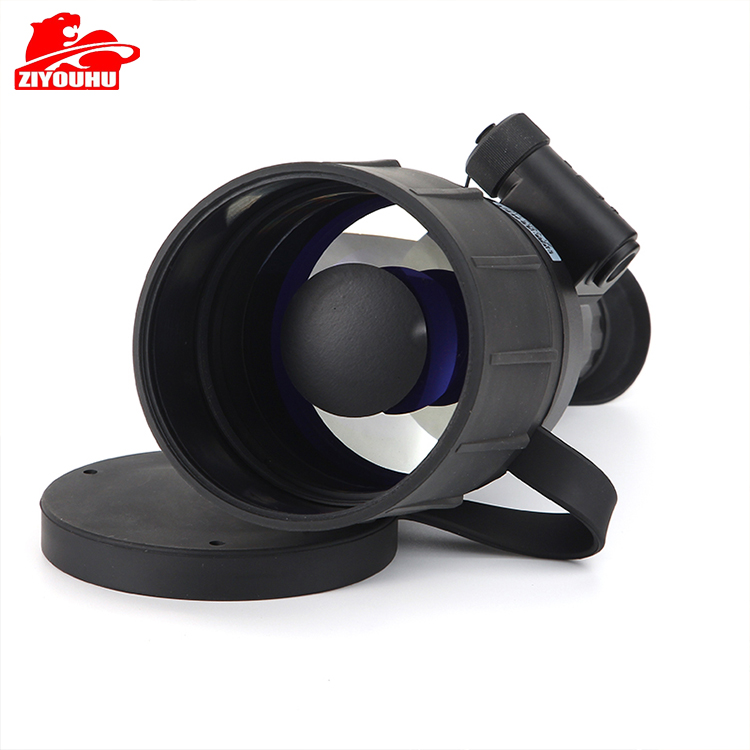

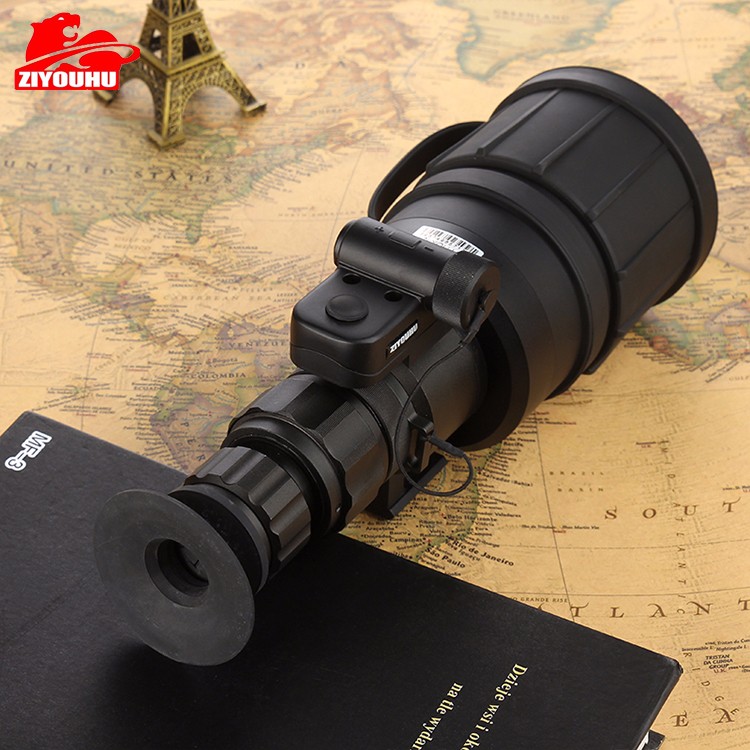

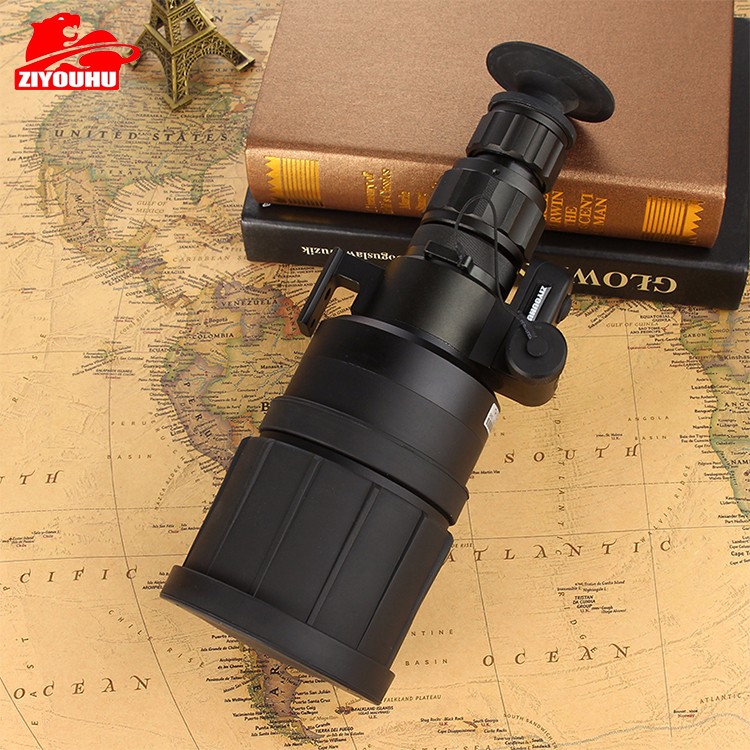

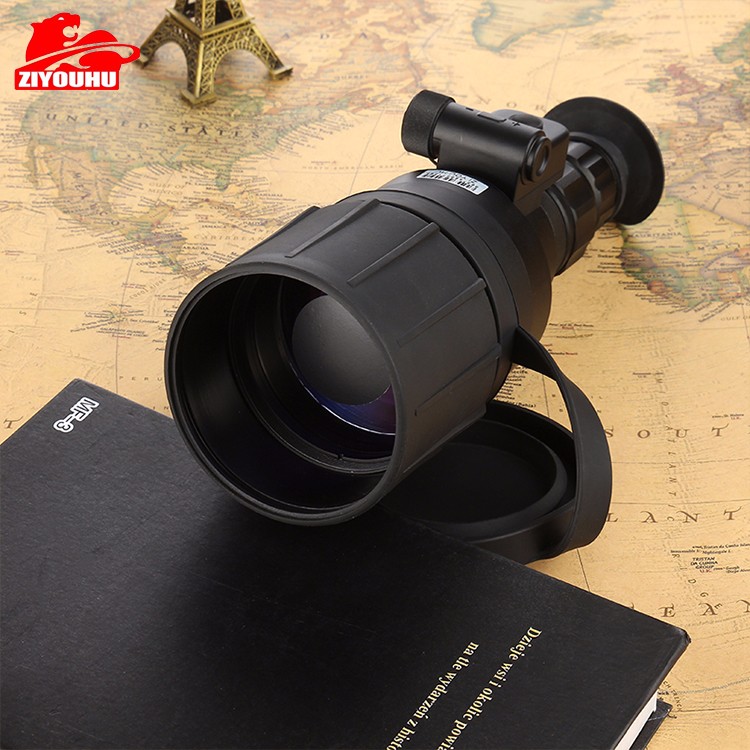

ZIYOUHU DF-MH0024product category:Night vision series
With the image intensifier as the core device, the night external aiming device does not use infrared searchlight to illuminate the target when working, but USES the reflected light of the target under weak light to observe and aim the target by enhancing the visible image that can be felt by human eyes through the image intensifier on the screen.
Product characteristics
1. High magnification 2. Remote observation
3. Advanced optical systems 4. High Resolution
5. Exquisite and durable material 6. Reliable and easy to operate
Like the class Class Class three generations of OMNI III
Brand ZIYOUHU
Model DF-MH0024
Magnification, x6x
Field of view 9 degrees
Lens system 26.8 mm F/1 .35
Departure distance Eye from distance 15mm
Diopter setting +5, -5
Size Overall divisions 130 * 130 * 250 mm
Weight light 1300g
Power Battery type CR123
Use time Estified battery life 10 hours(off IR)
Resolution Resolution, lp/mm 64 ~ 70lp/mm
Warranty, year 2
Target detection range
Recognition range(cloud cover) 10 meters to 1000 meters
Waterproof Level Immersion IP X6
Operating temperature Operating temperature-40 ~ +50
