ZIYOUHU DE-OHB-Yproduct category:Night vision series
With the image intensifier as the core device, the night external aiming device does not use infrared searchlight to illuminate the target when working, but USES the reflected light of the target under weak light to observe and aim the target by enhancing the visible image that can be felt by human eyes through the image intensifier on the screen.
Functional characteristics

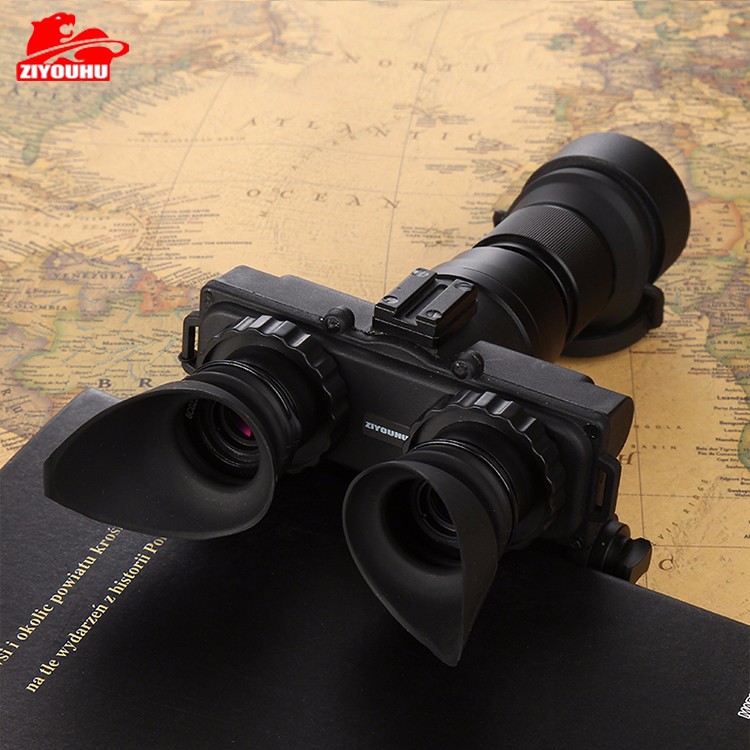

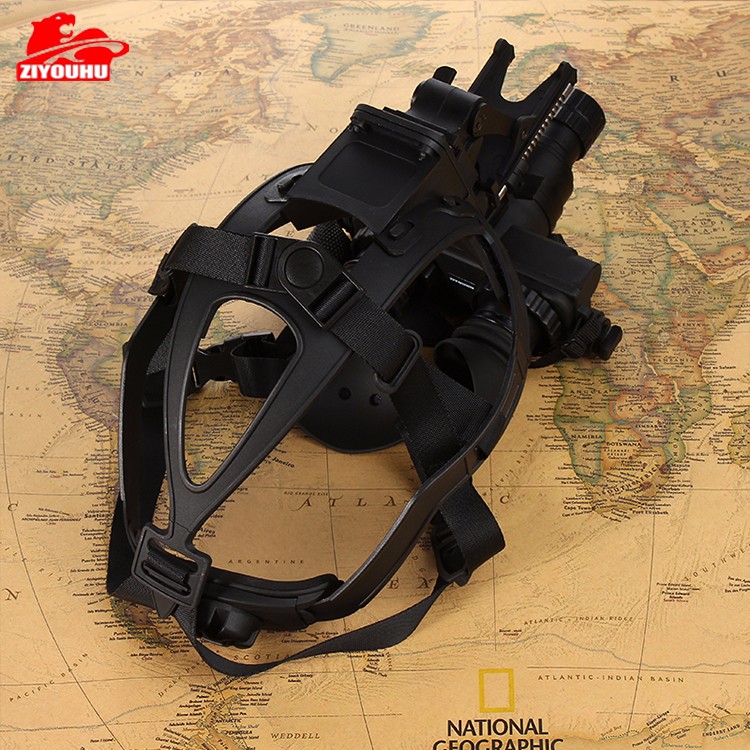

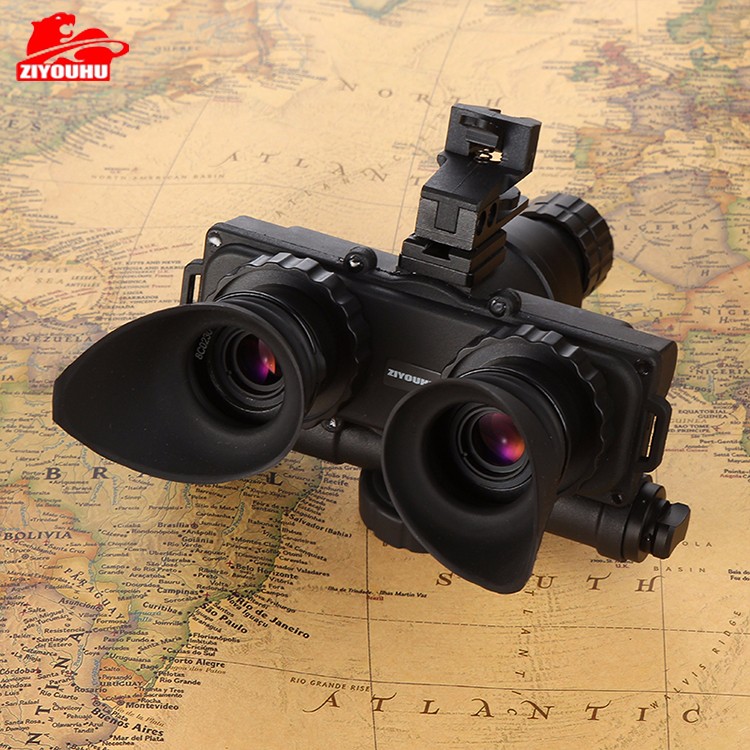

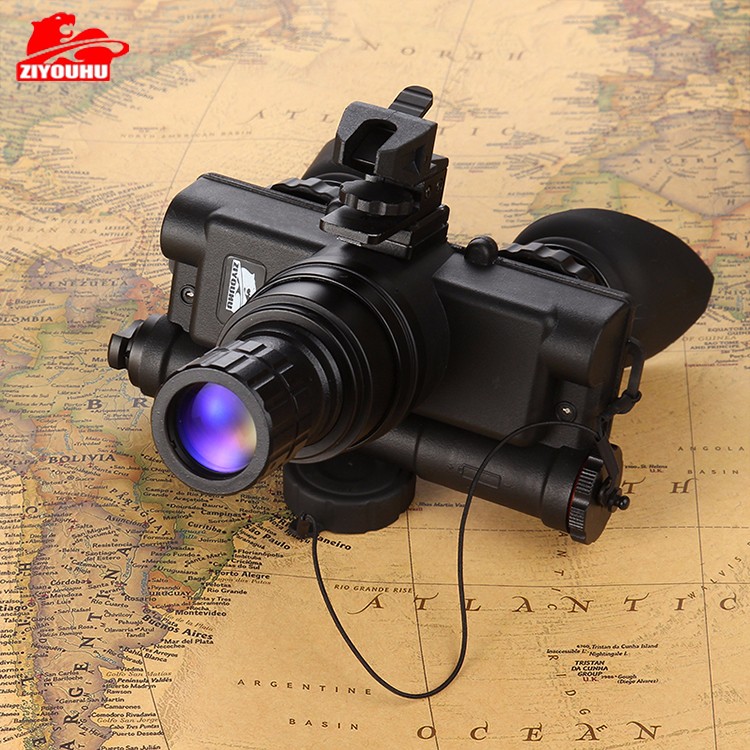

OHB-Y5I is a binocular single-telescope night vision device that can be worn or mounted with a helmet.
Like Booster Level: 5I
This machine can install 1.3, 5, 8 times lens
When installing an 8-fold lens, it can be connected to a tripod for long-range fixed-point observation.
Can be equipped with high-power infrared recharging lamps
With AUTO function, when wearing a head, roll up and wear a support, the device automatically closes
Strong light protection and automatic brightness control
Built-in wide-angle infrared light for target search
Technical parameters:
Brand: ZIYOUHU
Model No. DE-OHB-Y
Like Booster Level: 5I
Magnification: 1 times(3 times, 5 times, 8 times optional)
Lens coefficient: F1 .2, 25 mm
Resolution: 58-64 line / mm
Resolution: 138
Field of view: 40 °
Diopter adjustment range: -2 °-+8 °
Focus adjustment range: 25cm to infinity
Operating temperature: -40 to +50 °C
Storage temperature: -50 to +70 °C
Power supply: 1 3 Volt lithium battery
Battery hours: 60 hours
Size: 160 × 102 × 65mm
Weight: 0.48 kg
Waterproof: Yes
