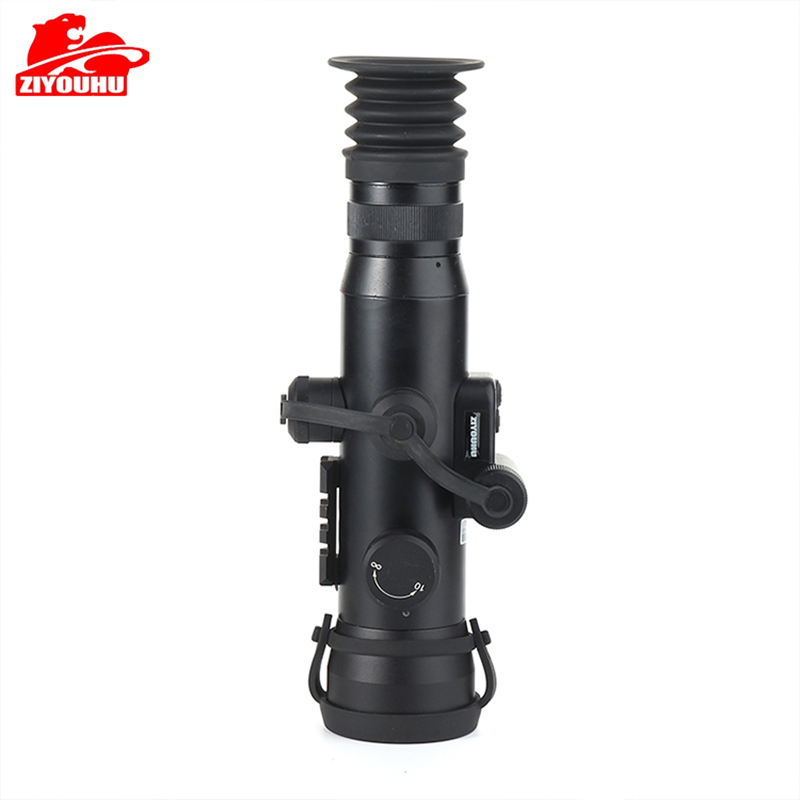

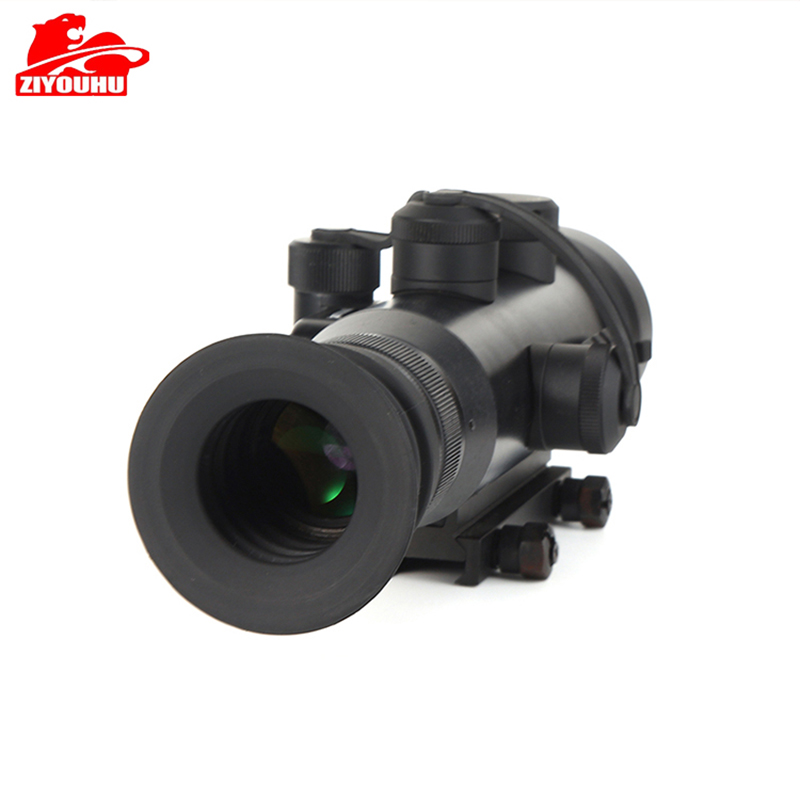

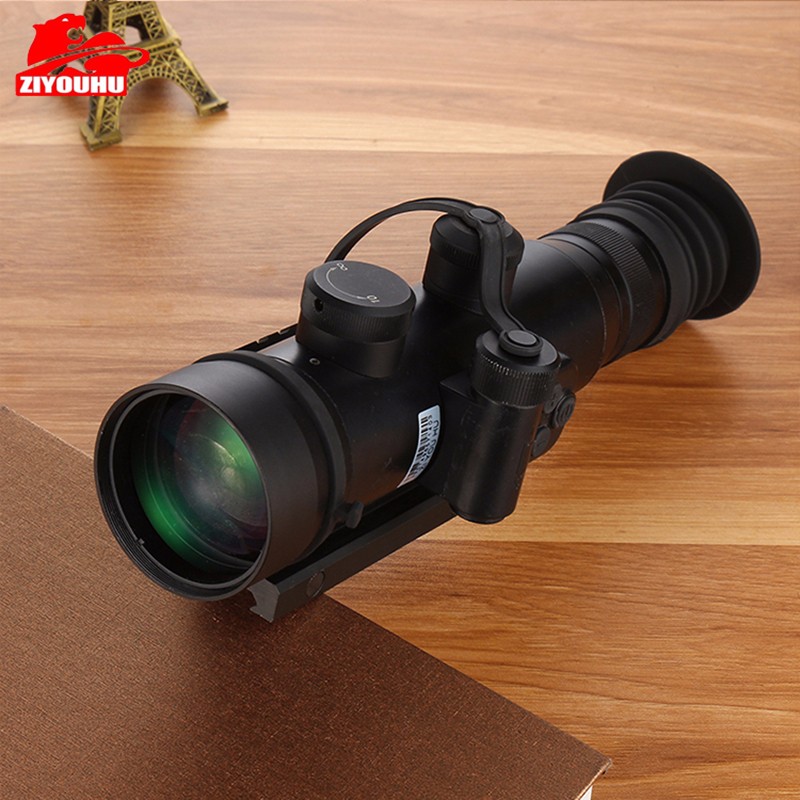

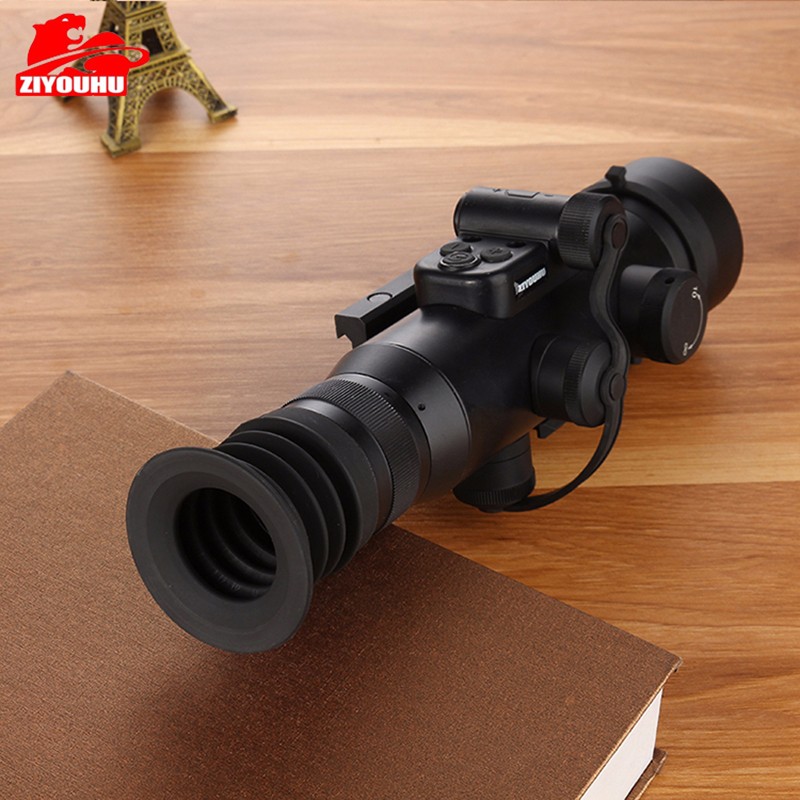

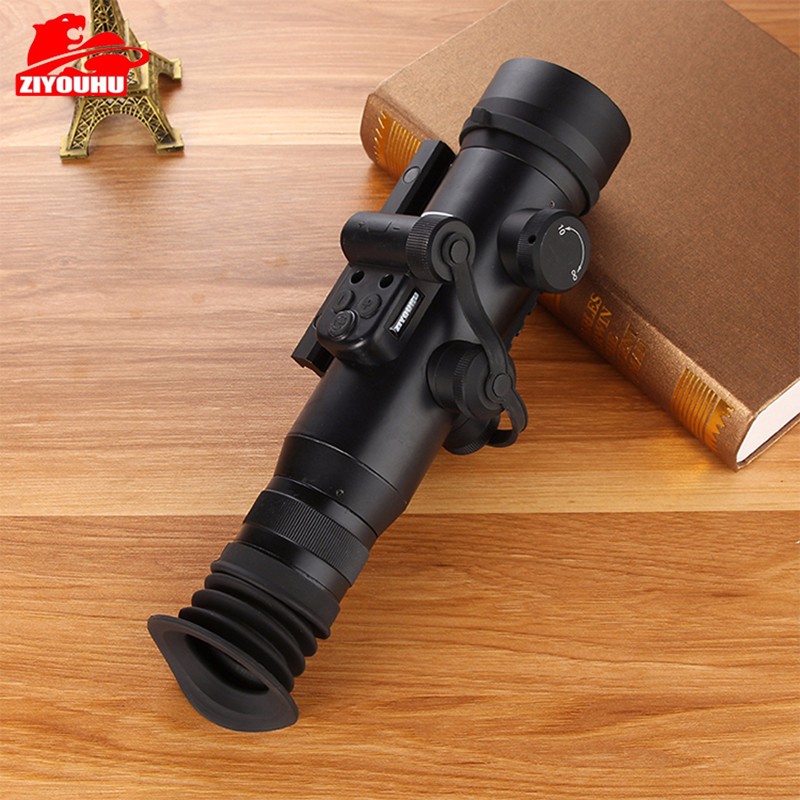

Night Vision Gun Aim at ZIYOUHU CR 540

Product description:

The ZIYOHU CR 540 uses a high-performance 3rd generation image enhancement tube, which greatly improves the observation distance and identification distance to 450-700m. As long as the brightness is up to 0.001 Lux, you can perform field sniper operations at night. In addition, this range has anti-glare functions, that is, when it suddenly encounters strong light, it can automatically close to protect the burned-out like an Enhancer and is therefore suitable for urban combat. It is also equipped with infrared equipment to compensate for brightness, so that military battles can be conducted under different conditions. In addition, it complies with the internationally accepted international standard pickup track system and can be used for G3 7.62 mm and G2 5.8 mm sniper rifles, respectively, and is connected to their own rail systems.

Scope of application:

+ Police/law enforcement/military

+ Good night wireless surveillance / hunting

+ Patrol / Rescue / Search

Product characteristics:

+ magnification 4.0 times

+ The third generation of enhanced tubes

+ Earthquake resistant even if there is a heavy recoil(including .375 H & HCAL).

+ Special high light transmission optics

+ Long exit distance

+ Precision tactical deviation / elevation angle adjustment(1/4 MOA)

+ Wide range of guides

+ waterproof / dust-proof

+ Light weight

+ Available for G2, G3 and AK-47 types

+ Meet the US military standard FOM & GT; 1800

Product Specifications

Image enhancement tube, substitute 3

Brand ZIYOUHU

Model CR 540

Resolution, to line / mm 58-72

Magnification, multiplied 4.0

Field of view 6.9 °

Lens system 80MM

Objective diameter, cm 75

Focus area, M 10-<unk>

Exit pupil diameter, mm 5

Hitomi, mm 46

Diopter regulation ± 5

Power, Volt 3

Battery Type 1XCR123

Battery life, 60 hours

Brightness source protection is

Low power indicator is

Identification range, meters 450.

Operating temperature, degrees -45 ~ 50

Storage temperature, degrees -45 ~ 65

Length, mm 280x95x82

At 25 °C, relative humidity 98 <unk>

Weight KG 1.03

Detection distance(M) 4/1 440 cloudy 275

Identification distance 275 cloudy 220, April/January

Diversion board wind direction adjustment 4/1 MOA/click

Double noise ratio 18:1 or better

Gain FL/fcd 16000-25000

Pipe life H 10000

Quality assurance, year 1</unk></unk>
