1. Product introduction:

This is a high-definition digital camera with MMS function and automatic monitoring, monitoring, and reconnaissance.

Hunting cameras use thermal release sensing animal(human body) sensing technology to automatically take high-resolution(12 million pixels) pictures and smooth video. This hunting camera is energy-saving when it does not detect animals(human bodies), consumes only 100 microamps of electricity, and can be on alert for a long time. It is also possible to automatically capture high-quality images(up to 12 million pixels) or record high-definition video clips(WVGA) and send pictures through mobile devices on the GSM network. When it started taking infrared(black and white) photos and videos,

With a camera and sound recorder with a 2-inch color LCD display, the speaker is embedded in the function, which is more convenient to use. The laser pointer is used to more accurately scan targets and supports MMS/SMS / e-mail transmission through the GSM network.

In addition, this camera can be used as a portable digital camera, carry it around, and is a great help when you go out to catch surprises. It has been tested and improved for a long time in the cold area, its performance is stable and reliable, and its manufacturing process is mature. The actual long-term use has reached -30 °C(guaranteed value is -20 °C), and it has been widely praised in Europe and the United States.

2. Functional characteristics:

1. High image quality(12 million pixel CMOS chip, shooting 4032 × 3024 pixel image, can also shoot 2048 × 1532 image, and one trigger, optional shooting 1-3)

2. Start the reaction quickly(from the discovery of the target to the shooting, the time interval is less than 1.2 seconds)

3. Ultra long standby time(standby current less than 0.1 mA, can be standby for 2 weeks using rechargeable lithium battery normal temperature, once -20 °C, standby 45 days record)

4. Video can be shot(1080P pixel image; 30 frames per second; Video length 10 seconds-90 seconds optional)

5. Ultra-small volume design(strong concealment, as well as dead leaf camouflage paint optional enough)

6. Use SD card records(very convenient and cheap, maximum support 32GSD card)

7. Automatic shooting of evidence on other special occasions

8. Night shooting does not Flash(no flash design, night shooting uses self-propelled infrared LED lighting, does not Flash when shooting, is not easy to expose, so it is not easy to lose)

9. Use dry battery No. 5

10.3. Product description Descript:

Image Sensor 5MP Color CMOS

Lens F/NO = 3.0 FOV(Field of View) = 60 °

Infrared flash 65feet/20m

LCD 2.0 "TFT

Memory card From 8 MB to 32 GB

Image resolution 12MP = 4032 X 3024, 8MP = 3264 X 2448, 5MP = 2560 × 1920

Video Resolution 1080P(25fps), 720P(25fps), VGA(30fps)

Video length 10s -- 90s

Photo + Video First take photo

PIR sensor Multi zone

PIR induction distance 65 ft/20 M(Below 77 °F/25 °C at the North Level)

PIR induction angle 35 °

PIR sensitivity Adjutable(High / Normal/Low)

Operation Mode 24H, DAY, NIGHT

Trigger time 1.0 s

Trigger interval 5 SEC. -30 min; Prosammel

Timer On / Off; Time Lapse Program

Time interval on / off, Moon Phase, Date

Product shot 1, 3, 6, 9

Cell Phone 1-4

Mailbox 1-4

Power Supply 8 × AA or 4 × AA or power supply

Standby current & lt; 0.25 mA(500 MMS(use 8 * AA papers)

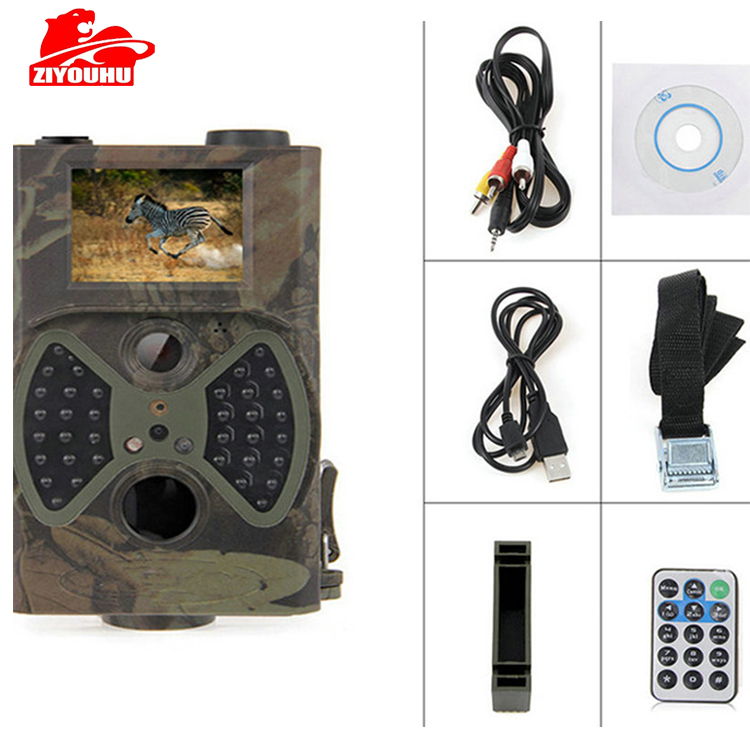

4. Package Pack Control:

Digital camera 1

Wireless remote control 1

USB cable 1

TV line 1

Tie 1

User manual 1

1 antenna
